Decompiling Encrypted iOS binaries

Introduction:

In my previous article, i had described how you would normally go about decompiling an iOS application. That method would be working for a majority of applications. However, many a times the developers push in security feature to prevent the attackers from decompiling/debugging the application.

In our case, though we are the developers friends and are testing the application, it would be good if we actually follow the same route as an attacker would. That way, we can understand what exact information is disclosed and how the application can be compromised.


Requirements:

• iOS device must be jailbroken.
• OpenSSH should be installed on the iOS device.
• SSH Client on your machine.
• "Class Dump" should be installed on the iOS device via "Cydia"
• "Cycript" should be installed on the iOS device via "Cydia".

Detailed Steps:

First we will try and use the same step as used in our previous post to dump the class file information via "class dump".

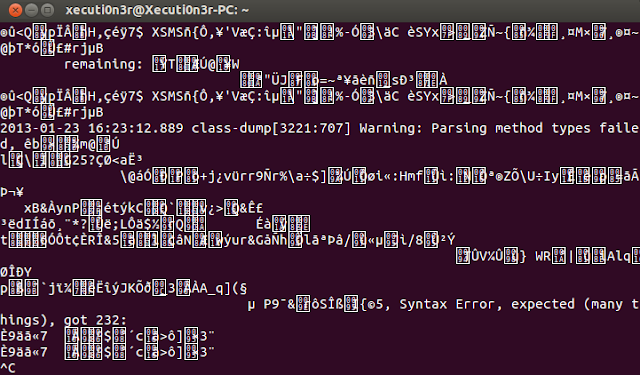

Below screenshot shows one of such an instances when we use classdump to decompile an application. The command run is of the same syntax as used earlier but the content is unreadable.

In such a case, using class dump alone would not be fruitful. We have to use a tool called as "Cycript" along with “weak_classdump” by Elias Limneos which is Cycript script that generates a header file for the class passed to the function.

It can be used as follows.

Step 1: Get the process id of the running application to be decryped and decompiled using the command "ps -ax | grep "App"".

The above screenshot shows that the process id was "3785".

Step 2: Download the latest copy of "weak_classdump.cy" from "weak_classdump" on to the working folder.

Then, use the below command to inject weak_classdump into the application to be decrypted and decompiled:

cycript -p 3785 weak_classdump.cy; cycript -p 3785

If, the injection was successfull, you will get the message as 'Added weak_classdump to "TWCTV" (3785)' where "TWCTV" is the application to be decrypted and decompiled.

Step 3: Now, you will get cy# where you will have to enter the below command to do the actual decompilation and to dump the required info.

weak_classdump_bundle([NSBundle mainBundle],"/tmp/3847_decrypted_application")

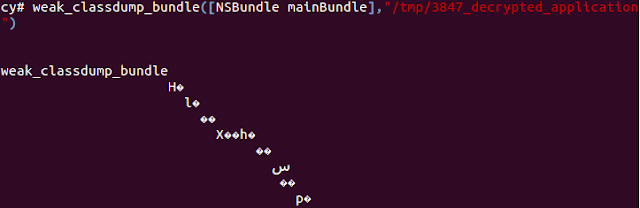

This step takes a lot of time and you would get somthing like the screenbelow when the process is complete.

Step 4: Now, exit cycript and you can access the complete decompiled cleartext source at "/tmp/3847_decrypted_application".

The above screenshot shows that the source code is in cleartext and can be easily analysed and the function names and values can be hooked in the runtime using Mobile Substrate or Cycript to force the application to perform various malicious activities.

References:

• Weak Classdump by Elias Limneos.
• Ryan Petrich patches for Weak_Classdump
